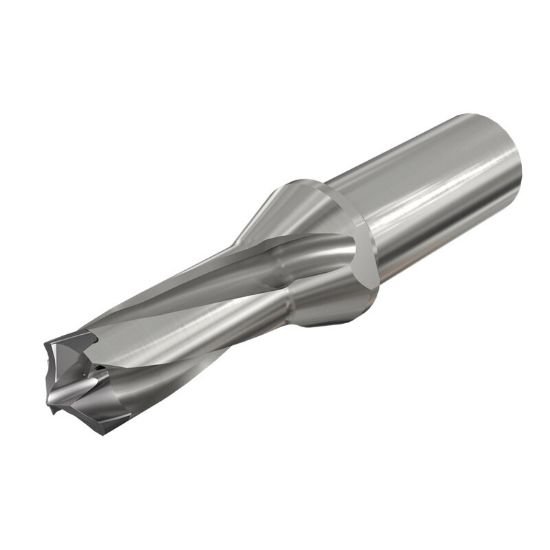

Picture of Iscar D3N 0630-095-075R-1.5D 0.63" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 1.5xD

Iscar D3N 0630-095-075R-1.5D 0.63" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 1.5xD

Part Number: ISC3362946 ISO: D3N 0630-095-075R-1.5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112445
Vendor: Sussex Tool and Supply
$303.55

Description

ISCAR 3362946 0.63" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 4.2230 107.26MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 0.6299 16.00MM
Flute Length 1.3100 33.27MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.6299 16.00MM
Cut Dia Max 0.6650 16.89MM
Materials & Finish
Tool Material Steel
