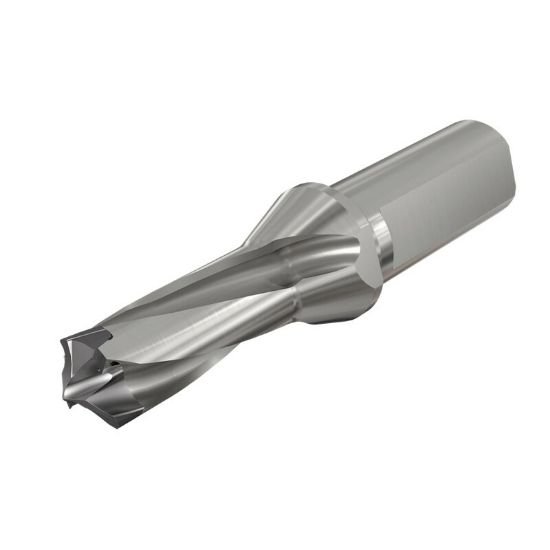

Picture of Iscar D3N 0630-095-075A-1.5D 0.63" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar D3N 0630-095-075A-1.5D 0.63" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3362945 ISO: D3N 0630-095-075A-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112444
Vendor: Sussex Tool and Supply
$315.19
ISCAR 3362945 0.63" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.2230 107.26MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 0.6299 16.00MM
Type Of Tool Drill
Flute Length 1.3100 33.27MM
Cut Dia Min 0.6299 16.00MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.6650 16.89MM
