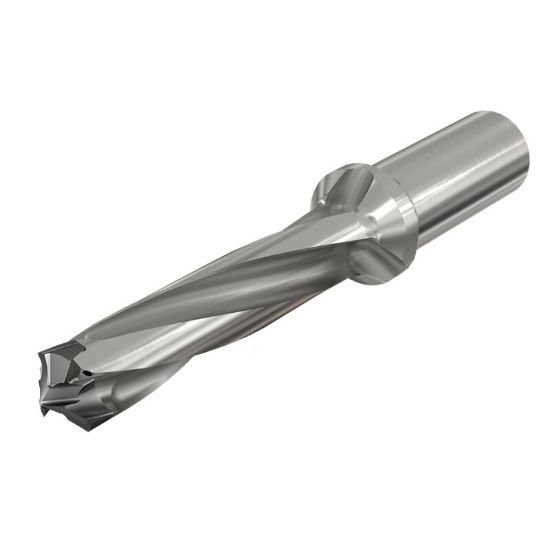

Picture of Iscar D3N 0591-295-075R-5D 0.591" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 5xD

Iscar D3N 0591-295-075R-5D 0.591" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 5xD

Part Number: ISC3363071 ISO: D3N 0591-295-075R-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112482
Vendor: Sussex Tool and Supply
$379.18
ISCAR 3363071 0.591" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.7500 19.05MM
Overall Length 6.1480 156.16MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Flute Length 3.2900 83.57MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.6260 15.90MM
