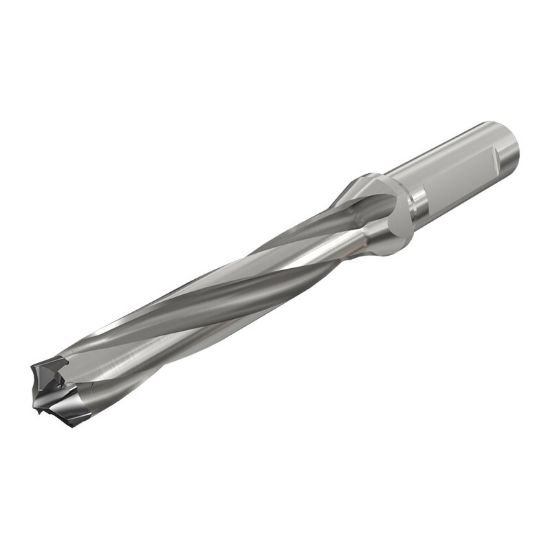

Picture of Iscar D3N 0571-285-063A-5D 0.571" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar D3N 0571-285-063A-5D 0.571" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3346838 ISO: D3N 0571-285-063A-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112125
Vendor: Sussex Tool and Supply
$403.30
ISCAR 3346838 0.571" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.9190 150.34MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.5709 14.50MM
Type Of Tool Drill
Flute Length 3.1700 80.52MM
Cut Dia Min 0.5709 14.50MM
Dia Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5870 14.91MM
