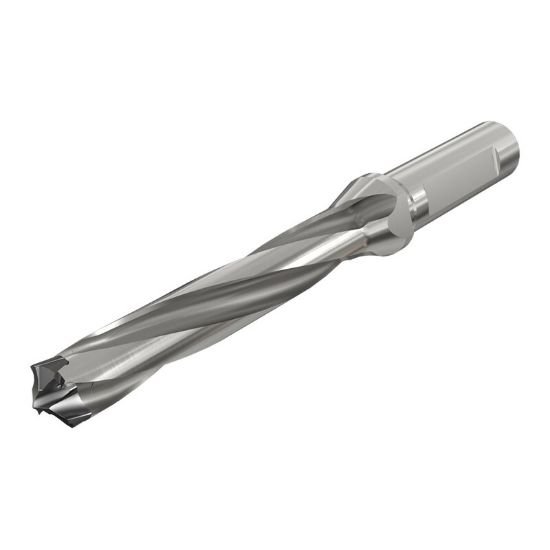

Picture of Iscar D3N 0531-266-063A-5D 0.531" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar D3N 0531-266-063A-5D 0.531" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3346832

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112121
Vendor: Sussex Tool and Supply
$428.00
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Cutter Type Drill
Made In USA No
Cutting Edge Definition Tool steel is any of various carbon steels and alloy steels that are particularly well-suited to be made into tools and tooling, including cutting tools, dies, hand tools, knives, and others.
Tool Material Steel
Machine Side (Toolpost) BBAR0.6250, WELDON0.6250
Machine Side (Toolpost) Connection Type Boring Bar, Weldon
Overall Length 5.6430 143.33MM
Shank Or Pilot Diameter 0.6250 15.88MM - 5/8
Family Group LogIQ3Cham
Coolant Thru Thru Coolant
Mach Side Connection Size 0.6250 15.88MM - 5/8
Tool Diameter 0.5313 13.50MM - 17/32
Flutes Or Inserts 3
Type of Tool Drill
Flute Length 2.9600 75.18MM
Cut Diameter Min 0.5315 13.50MM
Diameter Deep 5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Diameter Max 0.5470 13.89MM
