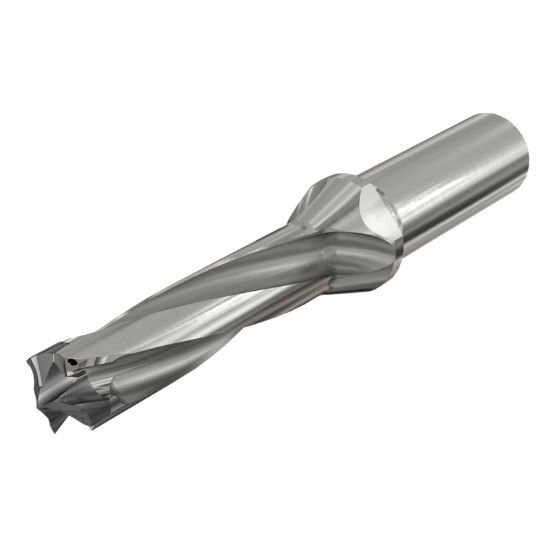

Picture of Iscar D3N 0531-159-063R-3D 0.531" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 3xD

Iscar D3N 0531-159-063R-3D 0.531" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 3xD

Part Number: ISC3363039 ISO: D3N 0531-159-063R-3D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112465
Vendor: Sussex Tool and Supply
$320.35

Description

ISCAR 3363039 0.531" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 2.6900 68.33MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Tool Dia 0.5313 13.50MM - 17/32
Flute Length 1.8900 48.01MM
Dia Deep 3.0x Dia
Performance & Capacity
Cut Dia Min 0.5315 13.50MM
Cut Dia Max 0.5470 13.89MM
Materials & Finish
Tool Material Steel
