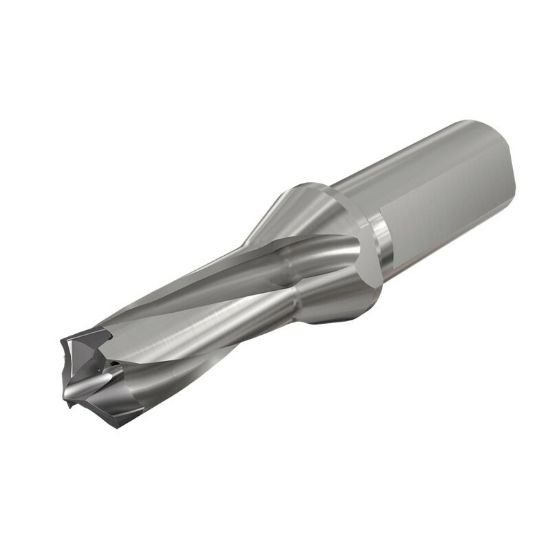

Picture of Iscar D3N 0531-080-063A-1.5D 0.532" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar D3N 0531-080-063A-1.5D 0.532" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3362928 ISO: D3N 0531-080-063A-1.5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112436
Vendor: Sussex Tool and Supply
$303.13
ISCAR 3362928 0.532" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.7830 96.09MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Tool Dia 0.5313 13.50MM - 17/32
Type Of Tool Drill
Flute Length 1.1000 27.94MM
Cut Dia Min 0.5315 13.50MM
Dia Deep 1.5.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5470 13.89MM
