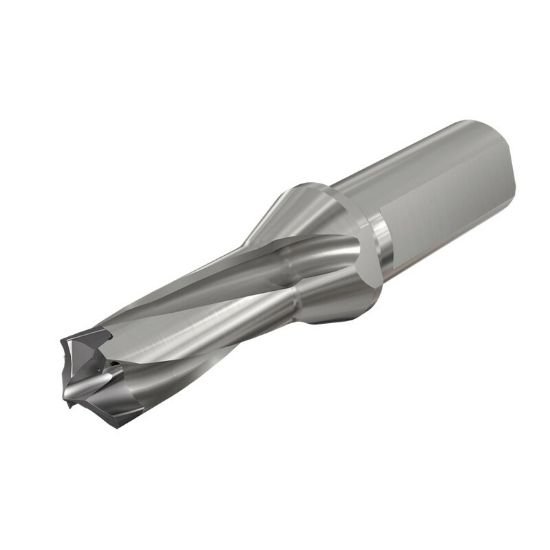

Picture of Iscar D3N 0512-077-063A-1.5D 0.512" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Iscar D3N 0512-077-063A-1.5D 0.512" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD

Part Number: ISC3362926 ISO: D3N 0512-077-063A-1.5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112434
Vendor: Sussex Tool and Supply
$323.33

Description

ISCAR 3362926 0.512" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 3.7240 94.59MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Tool Dia 0.5118 13.00MM
Flute Length 1.0700 27.18MM
Dia Deep 1.5.0x Dia
Performance & Capacity
Cut Dia Min 0.5118 13.00MM
Cut Dia Max 0.5280 13.41MM
Materials & Finish
Tool Material Steel
