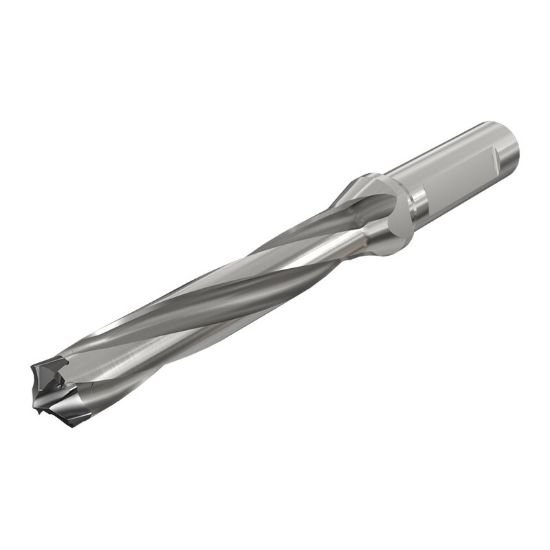

Picture of Iscar D3N 0492-246-063A-5D 0.492" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Iscar D3N 0492-246-063A-5D 0.492" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD

Part Number: ISC3346818 ISO: D3N 0492-246-063A-5D
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1112117
Vendor: Sussex Tool and Supply
$423.17

Description

ISCAR 3346818 0.492" Exchangeable Head 3 Flute Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Dimensions & Sizing
Overall Length 5.3610 136.17MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.4921 12.50MM
Flute Length 2.7300 69.34MM
Dia Deep 5.0x Dia
Performance & Capacity
Cut Dia Min 0.4921 12.50MM
Cut Dia Max 0.5080 12.90MM
Materials & Finish
Tool Material Steel
