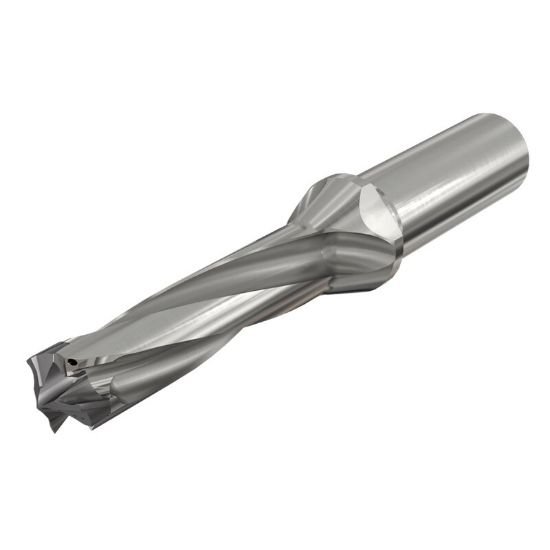

Picture of Iscar D3N 0472-141-063R-3D 0.472" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 3xD

Iscar D3N 0472-141-063R-3D 0.472" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 3xD

Part Number: ISC3363036 ISO: D3N 0472-141-063R-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112462
Vendor: Sussex Tool and Supply
$280.90
ISCAR 3363036 0.472" Exchangeable Head 3 Flute Drills with Coolant Holes and Round Shank, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Cylindrical
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.2880 108.92MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Tool Dia 0.4724 12.00MM
Type Of Tool Drill
Flute Length 1.6900 42.93MM
Cut Dia Min 0.4724 12.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.4880 12.40MM
