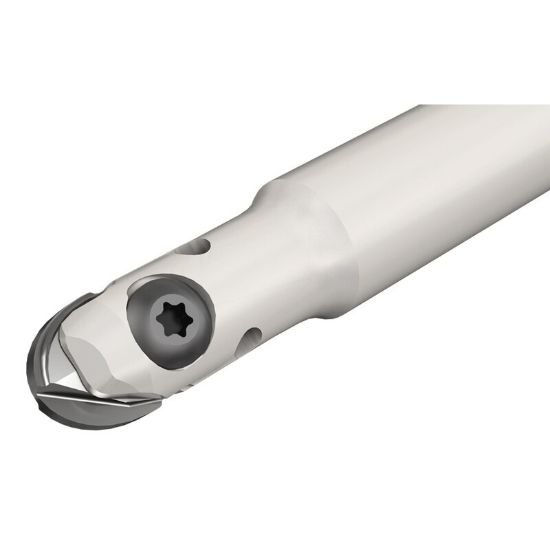

Picture of Iscar CM D1.00-A-W1.00 Milling Cutter 1.000 Diameter Weldon 1.000 6.700 OAL 2 Flute

Iscar CM D1.00-A-W1.00 Milling Cutter 1.000 Diameter Weldon 1.000 6.700 OAL 2 Flute

Part Number: ISC3100845 ISO: CM D1.00-A-W1.00 ANSI:CM D1.00-A-W1.00

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011791
Vendor: Sussex Tool and Supply
$373.50
ISCAR 3100845 Ball Ball Mill End Mill Weldon 1.0000 Neutral 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Ball Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.7000 170.18MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Shape/Cutter Pocket Shape Ball
Insert Type Neutral
Cut Dia Min 1.0000 25.40MM
Coolant Type External
Depth Of Cut Max 0.3800
Cut Dia Max 1.0000 25.40MM
Insert Screw 7000402
