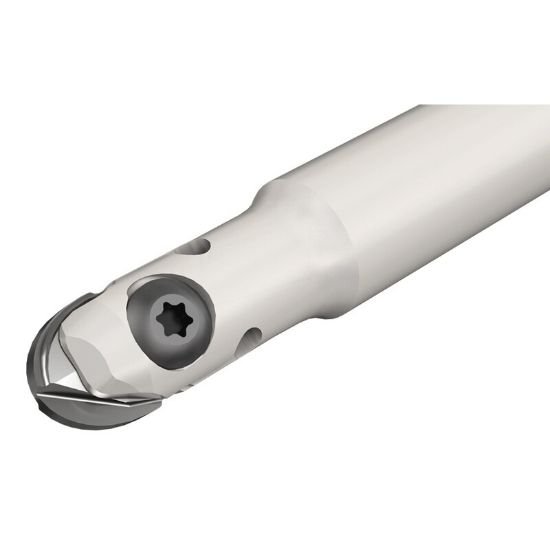

Picture of Iscar CM D.62-A-W.75 Milling Cutter 0.625 Diameter Weldon 0.750 5.000 OAL 2 Flute

Iscar CM D.62-A-W.75 Milling Cutter 0.625 Diameter Weldon 0.750 5.000 OAL 2 Flute

Part Number: ISC3100552 ISO: CM D.62-A-W.75 ANSI:CM D.62-A-W.75
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$305.28
SKU: 1011766

Description

ISCAR 3100552 Ball Ball Mill End Mill Weldon 0.7500 Neutral 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Ball Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape Ball
Insert Type Neutral
Coolant Type External
Insert Screw 7000895
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Performance & Capacity
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2900
Cut Dia Max 0.6250 15.88MM - 5/8
Materials & Finish
Tool Material Steel
