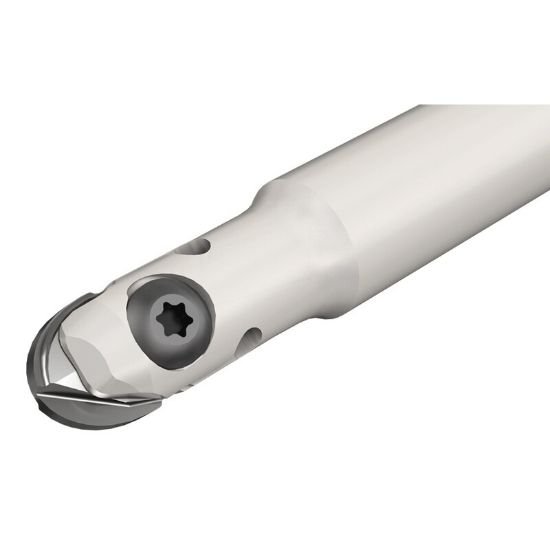

Picture of Iscar CM D.50-B-W.62 Milling Cutter 0.500 Diameter Weldon 0.625 4.500 OAL 2 Flute

Iscar CM D.50-B-W.62 Milling Cutter 0.500 Diameter Weldon 0.625 4.500 OAL 2 Flute

Part Number: ISC3100553 ISO: CM D.50-B-W.62 ANSI:CM D.50-B-W.62

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011767
Vendor: Sussex Tool and Supply
$274.50
ISCAR 3100553 Ball Ball Mill End Mill Weldon 0.6250 Neutral 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Ball Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.5000 114.30MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Shape/Cutter Pocket Shape Ball
Insert Type Neutral
Cut Dia Min 0.5000 12.70MM - 1/2
Coolant Type External
Depth Of Cut Max 0.4650
Cut Dia Max 0.5000 12.70MM - 1/2
Insert Screw 7000860
