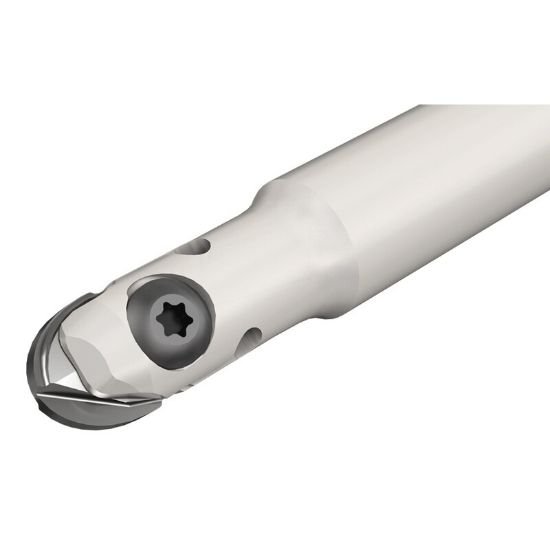

Picture of Iscar CM D.50-A-C.50 Milling Cutter 0.500 Diameter Round 0.500 4.000 OAL 2 Flute

Iscar CM D.50-A-C.50 Milling Cutter 0.500 Diameter Round 0.500 4.000 OAL 2 Flute

Part Number: ISC3100703 ISO: CM D.50-A-C.50 ANSI:CM D.50-A-C.50
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$253.44
SKU: 1011783

Description

ISCAR 3100703 Ball Ball Mill End Mill Cylindrical 0.5000 Neutral 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Ball Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Shape/Cutter Pocket Shape Ball
Insert Type Neutral
Coolant Type External
Insert Screw 7001831
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.5100
Cut Dia Max 0.5000 12.70MM - 1/2
Materials & Finish
Tool Material Steel
