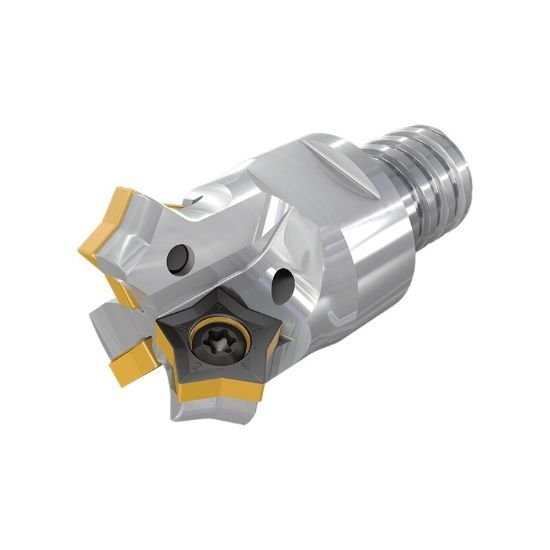

Picture of Iscar CH45-19/.75-3-mmT10-PN06 Milling Cutter 45.0° 0.736 Diameter Screw On T10 1.232 OAL 3 Flute

Iscar CH45-19/.75-3-mmT10-PN06 Milling Cutter 45.0° 0.736 Diameter Screw On T10 1.232 OAL 3 Flute

Part Number: ISC3316315 ISO: CH45-19/.75-3-MMT10-PN06 ANSI:CH45-19/.75-3-MMT10-PN06
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012825
Vendor: Sussex Tool and Supply
$322.56

Description

ISCAR 3316315 Pentagonal 45.0°, Chamfer Mill, Back Chamfer Thread On T10 Positive 0.7360 18.69MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style PN
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Type Positive
Coolant Type External
Insert Screw 7006977
Dimensions & Sizing
Overall Length 1.2320 31.29MM
Flutes/Inserts 3
Tool Dia 0.7360 18.69MM
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.5280 13.41MM
Depth Of Cut Max 0.4650
Cut Dia Max 0.7360 18.69MM
Materials & Finish
Tool Material Steel
