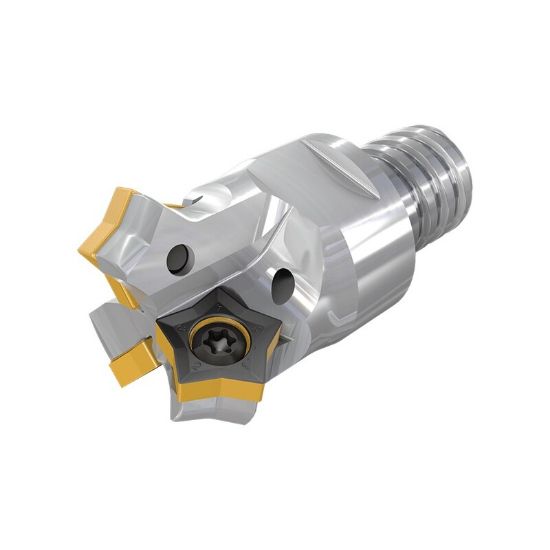

Picture of ISCAR CH45-10/.39-1-MMT05-PN06 Milling Cutter 45.0° 0.461 Diameter Screw On T05 0.778 OAL 1 Flute

ISCAR CH45-10/.39-1-MMT05-PN06 Milling Cutter 45.0° 0.461 Diameter Screw On T05 0.778 OAL 1 Flute

ANSI: CH45-10/.39-1-MMT05-PN06

ISO: CH45-10/.39-1-MMT05-PN06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3316313
Delivery date: 3-5 days
$254.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 1 Back Chamfer, Chamfer Mill, 45.0°
Additional Key Information 3 45.0°
Shipping State Texas
Insert/Tool Tool
Application Chamfering, Back Chamfering
Insert Application General Purpose
Package Size 1
Additional Key Information 2 Milling Cutter
Insert Type Positive
Uncategorized
Made In USA No
Dimensional Specifications
Cut Dia Max 0.4610 11.71MM
Machine Side T05
Depth Of Cut Max 0.0590
Cutter Dia 0.4610 11.71MM
Tool Material Steel
Cut Dia Min 0.2600 6.60MM
Machine Side Connection Size T05
Insert Size Ic 6
Flutes/Inserts 1
Overall Len 0.7780 19.76MM
Machine Side Connection Type Screw On
Cutting & Machining Properties
Cool Sply Type External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Style PN
Fasteners & Connectors
Insert Screw 7006639
