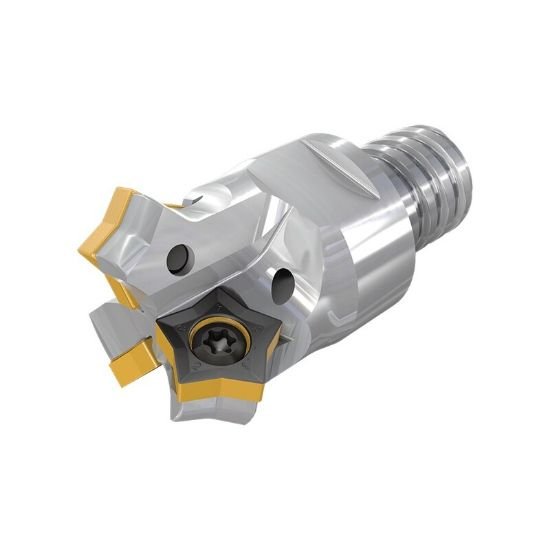

Picture of Iscar CH45-10/.39-1-mmT05-PN06 Milling Cutter 45.0° 0.461 Diameter Screw On T05 0.778 OAL 1 Flute

Iscar CH45-10/.39-1-mmT05-PN06 Milling Cutter 45.0° 0.461 Diameter Screw On T05 0.778 OAL 1 Flute

Part Number: ISC3316313 ISO: CH45-10/.39-1-MMT05-PN06 ANSI:CH45-10/.39-1-MMT05-PN06
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012823
Vendor: Sussex Tool and Supply
$274.56

Description

ISCAR 3316313 Pentagonal 45.0°, Chamfer Mill, Back Chamfer Thread On T05 Positive 0.4610 11.71MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Chamfer Mill, Back Chamfer
Coolant Thru Non Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style PN
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Type Positive
Coolant Type External
Insert Screw 7006639
Dimensions & Sizing
Overall Length 0.7780 19.76MM
Flutes/Inserts 1
Tool Dia 0.4610 11.71MM
Insert Size Ic 6
Geometry & Angles
Cutting Edge Angle 45.0°
Performance & Capacity
Cut Dia Min 0.2600 6.60MM
Depth Of Cut Max 0.0590
Cut Dia Max 0.4610 11.71MM
Materials & Finish
Tool Material Steel
