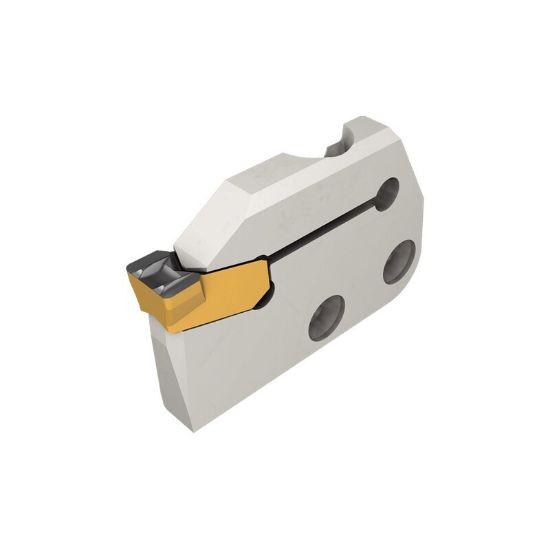

Picture of ISCAR CGPAD 4R-T16 Grooving,Groove Turning,Groove Threading Adapter Blade Tool

ISCAR CGPAD 4R-T16 Grooving,Groove Turning,Groove Threading Adapter Blade Tool

ANSI: CGPAD 4R-T16

ISO: CGPAD 4R-T16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2801214
Delivery date: 3-5 days
$140.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

For using TIP insert, toolholder seat needs to be modified according to insert profile to ensure clearance

Details

Ext. Grooving Ext. Grooving & Turning Ext. Profiling Parting Threading (Ext.) Groove Turn T

MODULAR-GRIP adapters for GIP/GIF groove-turn inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Additional Key Information 3 Clamp Down
Insert Application General Purpose
Additional Key Information 1 Groove Threading, Grooving, Groove Turning
Sold by Pieces 1
Additional Key Information 2 Adapter Blade
Additional Key Information 4 Modular Tools
Application Ext.Groove Turning, Ext.Grooving, Ext.Threading
Shipping State Texas
Insert/Tool Tool
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Machine Side ISCPAD1.181
Machine Side Connection Type Modular
Insert Size Ic 4
Overall Len 1.6540 42.01MM
Cutting Width 0.1570 3.99MM
Tool Material Steel
Depth Of Cut Max 0.6300
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
