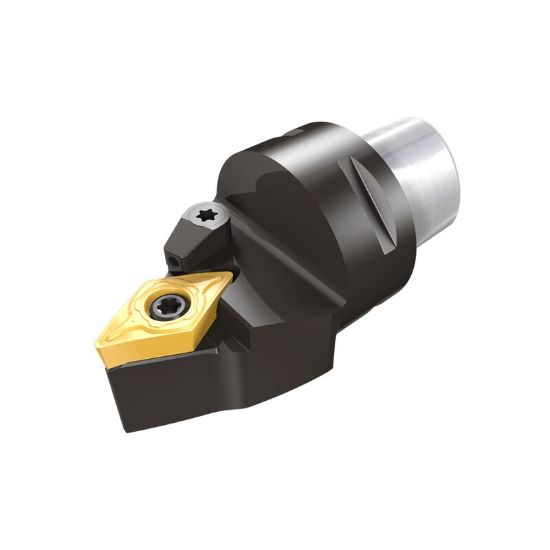

Picture of ISCAR C5 SDNCN-00060-13-SL-JHP Turning Stick Tool 55.0° Insert 1.968 PSC "Capt0 Type"

ISCAR C5 SDNCN-00060-13-SL-JHP Turning Stick Tool 55.0° Insert 1.968 PSC "Capt0 Type"

ANSI: C5 SDNCN-00060-13-SL-JHP

ISO: C5 SDNCN-00060-13-SL-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603575
Delivery date: 3-5 days
$610.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Tools with CAMFIX (ISO 26623-1) shanks and channels for high pressure coolant carrying the positive 55° rhombic inserts. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Sold by Pieces 1
Additional Key Information 3 Quick Change
Shipping State Texas
Additional Key Information 2 55.0°
Insert Application General Purpose
Additional Key Information 1 Stick Tool
Additional Key Information 4 PSC 5 "Capt0 Type"
Insert Type Positive
Application Ext.Turning
Uncategorized
Made In USA No
Dimensional Specifications
Lead Angle 62.5°
Machine Side Connection Type PSC "Capt0 Type"
Tool Material Steel
Overall Len 3.5430 89.99MM
Clearance Angle 60.0°
Machine Side PSC "Capt0 Type"5
Machine Side Connection Size 1.9685 50.00MM
Shank/Pilot Dia 1.9685 50.00MM
Insert Size Ic 13
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Neutral
