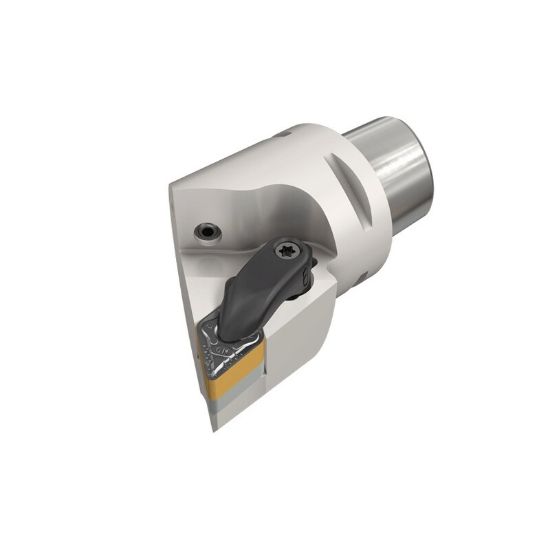

Picture of ISCAR C5 DDJNR-35060-15 Turning Stick Tool On Edge Insert 1.968 PSC "Capt0 Type"

ISCAR C5 DDJNR-35060-15 Turning Stick Tool On Edge Insert 1.968 PSC "Capt0 Type"

ANSI: C5 DDJNR-35060-15

ISO: C5 DDJNR-35060-15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3696254
Delivery date: 3-5 days
$362.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Use RDT 443 seat for DN.. 43. inserts

Details

R-clamp tools with CAMFIX (ISO 26623-1 standard) exchangeable tapered shanks, carrying the negative 55° rhombic inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Stick Tool
Additional Key Information 4 PSC 5 "Capt0 Type"
Sold by Pieces 1
Shipping State Texas
Additional Key Information 2 On Edge
Additional Key Information 3 Quick Change
Application Ext.Turning
Package Size 1
Insert/Tool Tool
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 15
Clearance Angle 27.0°
Machine Side Connection Size 1.9685 50.00MM
Lead Angle 93°
Shank/Pilot Dia 1.9685 50.00MM
Machine Side Connection Type PSC "Capt0 Type"
Machine Side PSC "Capt0 Type"5
Tool Material Steel
Overall Len 3.5430 89.99MM
Cutting & Machining Properties
Insert Style LN
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
