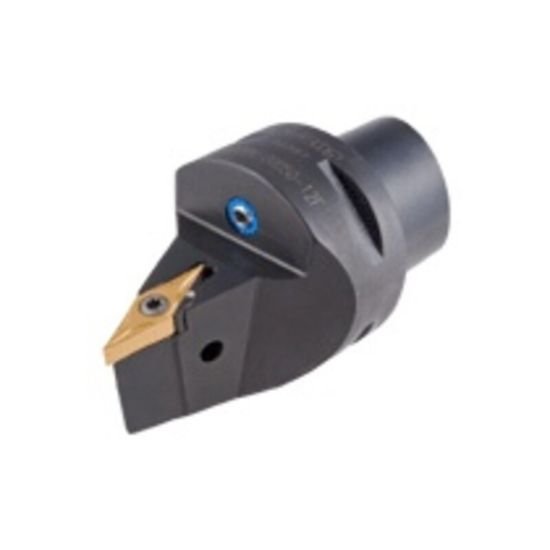

Picture of Iscar C4 SVVNN-00050-12F Turning Stick Tool 35.0° Insert 1.574 PSC "Capto Type"

Iscar C4 SVVNN-00050-12F Turning Stick Tool 35.0° Insert 1.574 PSC "Capto Type"

Part Number: ISC3602322 ISO: C4 SVVNN-00050-12F ANSI:C4 SVVNN-00050-12F
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054176
Vendor: Sussex Tool and Supply
$425.28

Description

ISCAR 3602322 35.0 ° Stick Tool Quick Change CAPTO4 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Neutral
Collet Seal Type C4
Dimensions & Sizing
Overall Length 2.9130 73.99MM
Shank/Pilot Dia 1.5748 40.00MM
Insert Size Ic 12 "2.5"
Geometry & Angles
Lead Angle 72.5°
Lead Angle & Clearance Angle Combined 72.5° Lead Angle 70.0° Clearance Angle
Clearance Angle 70.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 35.0°
