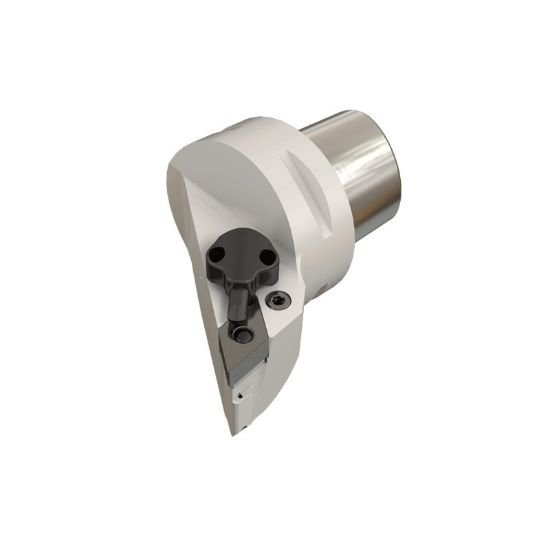

Picture of Iscar C4 PDJNR 27055-15-JHP Turning Stick Tool 55.0° Insert 1.574 PSC "Capto Type"

Iscar C4 PDJNR 27055-15-JHP Turning Stick Tool 55.0° Insert 1.574 PSC "Capto Type"

Part Number: ISC3603550 ISO: C4 PDJNR 27055-15-JHP ANSI:C4 PDJNR 27055-15-JHP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054343
Vendor: Sussex Tool and Supply
$578.88

Description

ISCAR 3603550 55.0 ° Stick Tool Quick Change CAPTO4 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Right Hand
Collet Seal Type C4
Dimensions & Sizing
Overall Length 3.1100 78.99MM
Shank/Pilot Dia 1.5748 40.00MM
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
