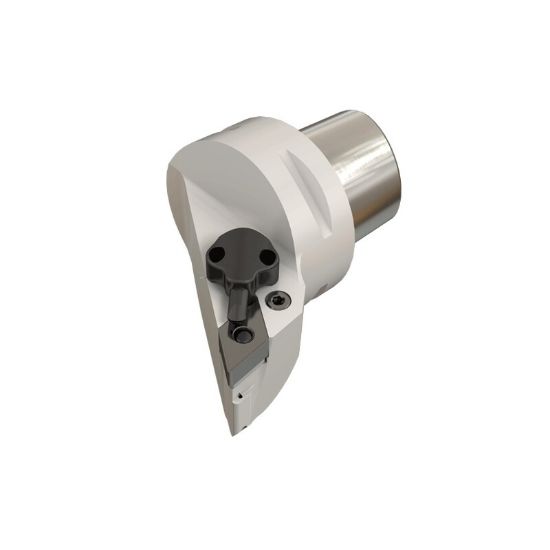

Picture of ISCAR C4 PDJNR 27050-11-JHP Turning Stick Tool 55.0° Insert 1.574 PSC "Capt0 Type"

ISCAR C4 PDJNR 27050-11-JHP Turning Stick Tool 55.0° Insert 1.574 PSC "Capt0 Type"

ANSI: C4 PDJNR 27050-11-JHP

ISO: C4 PDJNR 27050-11-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3603545
Delivery date: 3-5 days
$548.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

Lever lock tools with CAMFIX (ISO 26623-1 standard) exchangeable shanks and channels for high pressure coolant, carrying negative 55° inserts.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 1 Stick Tool
Additional Key Information 4 PSC 4 "Capt0 Type"
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Additional Key Information 2 55.0°
Sold by Pieces 1
Additional Key Information 3 Quick Change
Shipping State Texas
Application Ext.Turning
Package Size 1
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 11 "33"
Clearance Angle 27.0°
Machine Side Connection Type PSC "Capt0 Type"
Shank/Pilot Dia 1.5748 40.00MM
Machine Side PSC "Capt0 Type"4
Tool Material Steel
Overall Len 2.9130 73.99MM
Lead Angle 93°
Machine Side Connection Size 1.5748 40.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Right
