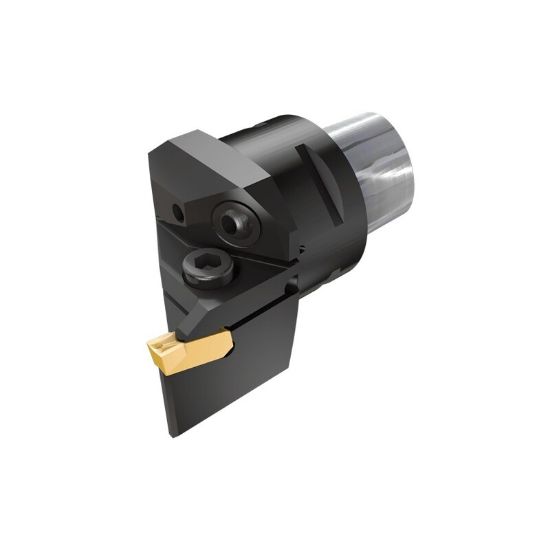

Picture of ISCAR C4 GHDR-3 Grooving,Groove Turning,Pully V Groove Stick Tool 1.574 Tool

ISCAR C4 GHDR-3 Grooving,Groove Turning,Pully V Groove Stick Tool 1.574 Tool

ANSI: C4 GHDR-3

ISO: C4 GHDR-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2890688
Delivery date: 3-5 days
$401.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Details

External grooving turning and parting toolholders, with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

When using GPV and TIP inserts, toolholder tip must be modified according to insert profile to ensure clearance To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 4 PSC 4 "Capt0 Type"
Sold by Pieces 1
Additional Key Information 3 Quick Change
Application Ext.Groove Turning, Pulley Groove, Ext.Grooving
Shipping State Texas
Additional Key Information 1 Pully V Groove, Grooving, Groove Turning
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Insert Type Positive
Additional Key Information 2 Stick Tool
Uncategorized
Made In USA No
Dimensional Specifications
Cutting Width 0.1100 2.79MM
Machine Side Connection Size 1.5748 40.00MM
Machine Side Connection Type PSC "Capt0 Type"
Depth Of Cut Max 0.3540
Insert Size Ic 3, 4
Machine Side PSC "Capt0 Type"4
Shank/Pilot Dia 1.5748 40.00MM
Tool Material Steel
Overall Len 3.1100 78.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GI,GI,GI,GP,GI
