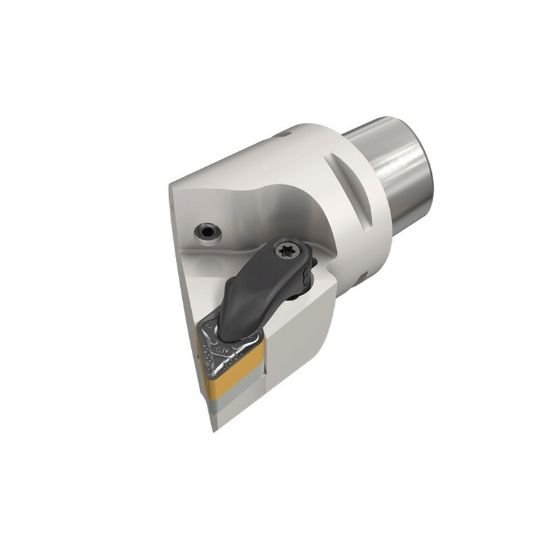

Picture of Iscar C4 DDJNL-27060-15 Turning Stick Tool 55.0° Insert 1.574 PSC "Capto Type"

Iscar C4 DDJNL-27060-15 Turning Stick Tool 55.0° Insert 1.574 PSC "Capto Type"

Part Number: ISC3602439 ISO: C4 DDJNL-27060-15 ANSI:C4 DDJNL-27060-15
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054205
Vendor: Sussex Tool and Supply
$353.28

Description

ISCAR 3602439 55.0 ° Stick Tool Quick Change CAPTO4 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Left Hand
Collet Seal Type C4
Dimensions & Sizing
Overall Length 3.3070 84.00MM
Shank/Pilot Dia 1.5748 40.00MM
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 60.0° Clearance Angle
Clearance Angle 60.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
