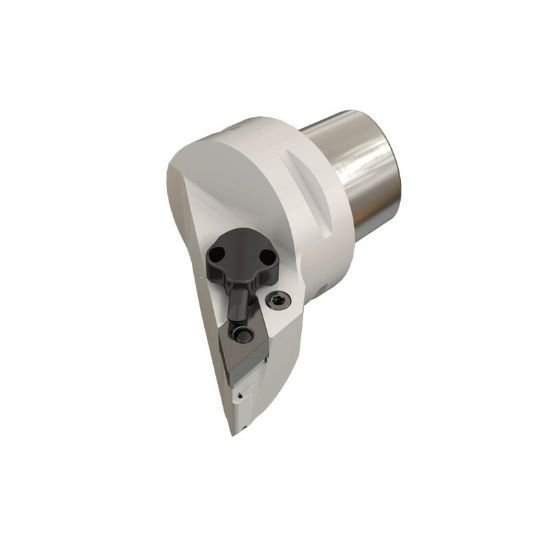

Picture of Iscar C3 PDJNR-22045-11-JHP Turning Stick Tool 55.0° Insert 1.181 PSC "Capto Type"

Iscar C3 PDJNR-22045-11-JHP Turning Stick Tool 55.0° Insert 1.181 PSC "Capto Type"

Part Number: ISC3603670 ISO: C3 PDJNR-22045-11-JHP ANSI:C3 PDJNR-22045-11-JHP
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1054369
Vendor: Sussex Tool and Supply
$578.88

Description

ISCAR 3603670 55.0 ° Stick Tool Quick Change CAPTO3 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Right Hand
Collet Seal Type C3
Dimensions & Sizing
Overall Length 2.5200 64.01MM
Shank/Pilot Dia 1.1811 30.00MM
Insert Size Ic 11 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 27.0° Clearance Angle
Clearance Angle 27.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 55.0°
