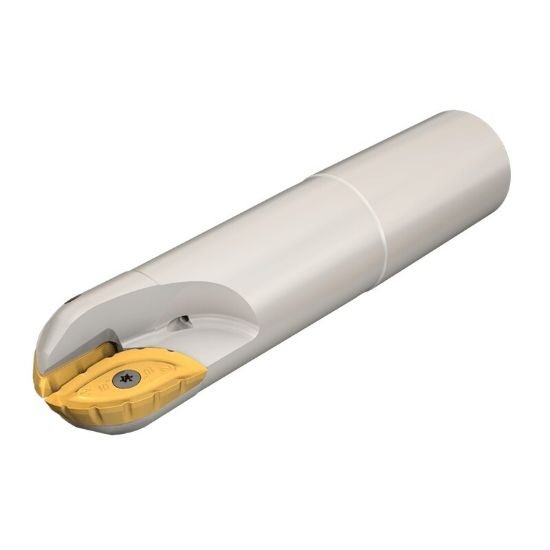

Picture of Iscar BCM D1.00-B-W1.25-C Milling Cutter 1.000 Diameter Weldon 1.250 8.750 OAL 2 Flute

Iscar BCM D1.00-B-W1.25-C Milling Cutter 1.000 Diameter Weldon 1.250 8.750 OAL 2 Flute

Part Number: ISC3103053 ISO: BCM D1.00-B-W1.25-C ANSI:BCM D1.00-B-W1.25-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011996
Vendor: Sussex Tool and Supply
$504.90
ISCAR 3103053 Ball Ball Mill End Mill Weldon 1.2500 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Ball Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 8.7500 222.25MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Finishing, Semi Finishing
Insert Style BC
Insert Shape/Cutter Pocket Shape Ball
Insert Type Positive
Insert Size Ic 1
Cut Dia Min 1.0000 25.40MM
Coolant Type Through Hole
Depth Of Cut Max 1.0200
Cut Dia Max 1.0000 25.40MM
Insert Screw 7000216
