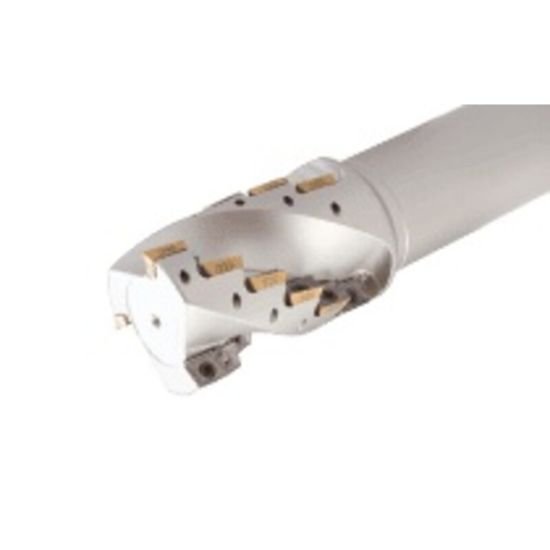

Picture of Iscar APK D .75-1.12-W.75FE Milling Cutter 90.0°, Corn Cob 0.750 Diameter Weldon 0.750 3.500 OAL 4 Flute

Iscar APK D .75-1.12-W.75FE Milling Cutter 90.0°, Corn Cob 0.750 Diameter Weldon 0.750 3.500 OAL 4 Flute

Part Number: ISC3100273 ISO: APK D .75-1.12-W.75FE ANSI:APK D .75-1.12-W.75FE
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011740
Vendor: Sussex Tool and Supply
$678.72

Description

ISCAR 3100273 Parallelogram 90.0°, Corn Cob End Mill Weldon 0.7500 Positive 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 1.4700
Cut Dia Max 0.7500 19.05MM - 3/4
Materials & Finish
Tool Material Steel
