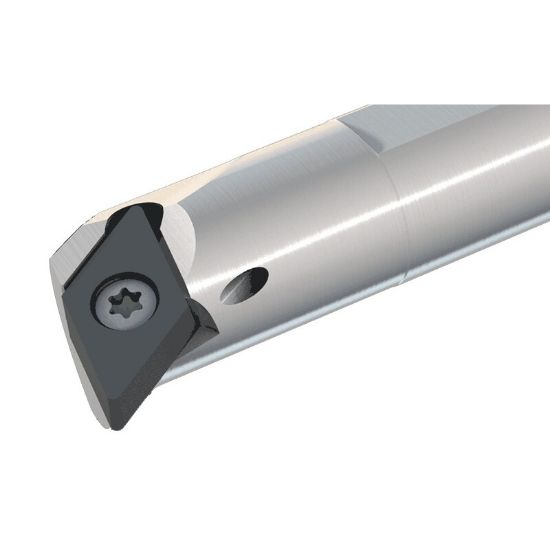

Picture of ISCAR A20R SDXNR-07 Turning Boring Bar 55.0° Insert 0.787 Boring Bar

ISCAR A20R SDXNR-07 Turning Boring Bar 55.0° Insert 0.787 Boring Bar

ANSI: A20R SDXNR-07

ISO: A20R SDXNR-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC6989911
Delivery date: 3-5 days
$384.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Important Notes

Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole.

Details

Boring bars with steel and carbide shanks carrying the DNGP 22.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Additional Key Information 2 55.0°
Package Size 1
Sold by Pieces 1
Shipping State Texas
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Additional Key Information 1 Boring Bar
Uncategorized
Made In USA No
Dimensional Specifications
Insert Size Ic 07 "22"
Machine Side BBAR0.7874
Lead Angle 100°
Shank/Pilot Dia 0.7874 20.00MM
Clearance Angle 15.5°
Machine Side Connection Size 0.7874 20.00MM
Machine Side Connection Type Boring Bar
Overall Len 7.8740 200.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Hand R/L Right
Inter/Extern Internal
