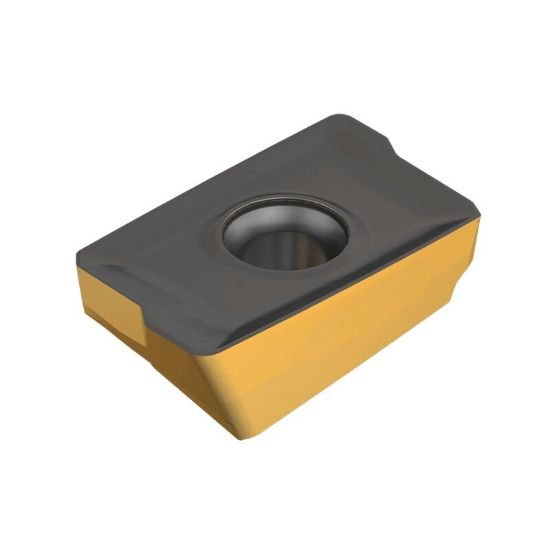

Picture of Iscar 3MAXKT2006PDTR IC4100 Milling Insert Paralelagram 0.039 Corner Radius TiCN + Al2O3 + TiN

Iscar 3MAXKT2006PDTR IC4100 Milling Insert Paralelagram 0.039 Corner Radius TiCN + Al2O3 + TiN

Part Number: ISC5605818 ISO: 3MAXKT2006PDTR IC4100 ANSI:3MAXKT2006PDTR IC4100
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1009705
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10

Description

ISCAR 5605818 Parallelogram Insert Positive TiCN + Al2O3 + TiN A tough substrate with a MTCVD and alpha alumina coating. Recommended for milling grey cast iron at high cutting speeds, providing extended tool life.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type Medium
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Dimensions & Sizing
Insert Size Ic 20
Geometry & Angles
Corner Radius 0.0390 0.99MM
Performance & Capacity
Cut Rating Graphite, Gray Iron, Ductile Iron, >50HRC Steel
Depth Of Cut Max 0.7870
Materials & Finish
Cutting Edge Mat Carbide
Coating TiCN + Al2O3 + TiN
Grade IC4100
Compatibility & Fit
Insert Fits Parallelogram
