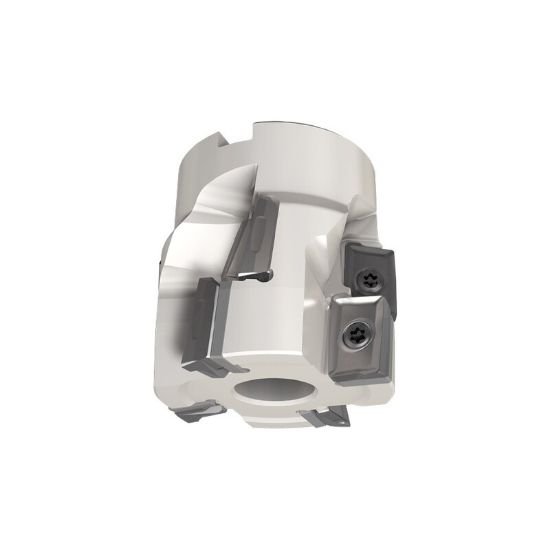

Picture of Iscar 3M SM D4.0-1.50-6-1.50-20 Milling Cutter 90.0°, Corn Cob 4.000 Diameter Round 1.500 2.600 OAL 12 Flute

Iscar 3M SM D4.0-1.50-6-1.50-20 Milling Cutter 90.0°, Corn Cob 4.000 Diameter Round 1.500 2.600 OAL 12 Flute

Part Number: ISC3101536 ISO: 3M SM D4.0-1.50-6-1.50-20 ANSI:3M SM D4.0-1.50-6-1.50-20
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011804
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3101536 Parallelogram 90.0°, Corn Cob End Mill Cylindrical 1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002024
Seat/Nest 5601959
Seat Screw 7001998
Dimensions & Sizing
Overall Length 2.6000 66.04MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 12
Tool Dia 4.0000 101.60MM
Insert Size Ic 20
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 1.5500
Materials & Finish
Tool Material Steel
