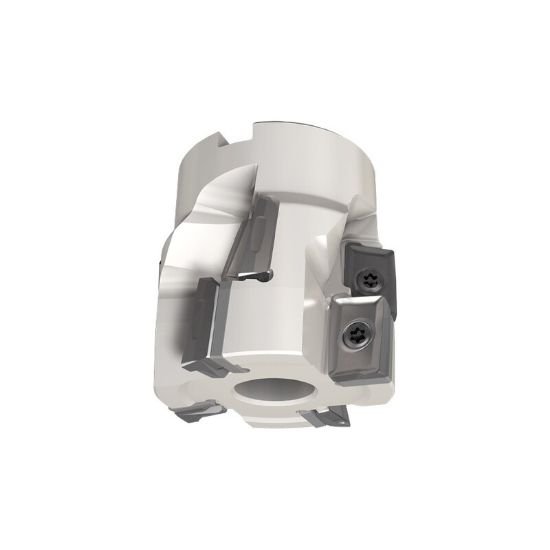

Picture of Iscar 3M SM D1.5-1.4-3-.75-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Round 0.750 2.560 OAL 9 Flute

Iscar 3M SM D1.5-1.4-3-.75-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Round 0.750 2.560 OAL 9 Flute

Part Number: ISC3102954 ISO: 3M SM D1.5-1.4-3-.75-13 ANSI:3M SM D1.5-1.4-3-.75-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011978
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3102954 Parallelogram 90.0°, Corn Cob Cylindrical 0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000212
Dimensions & Sizing
Overall Length 2.5600 65.02MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 9
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.3150
Materials & Finish
Tool Material Steel
