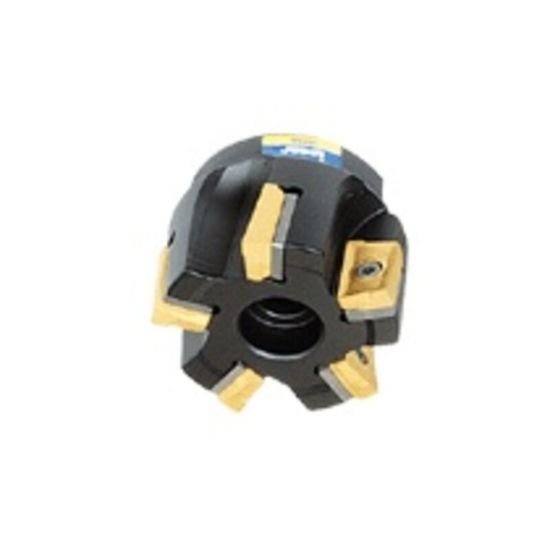

Picture of Iscar 3M F90AX D6.00-8-2.00-20 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

Iscar 3M F90AX D6.00-8-2.00-20 Milling Cutter 90.0° 6.000 Diameter Face Mill 2.000 2.500 OAL 8 Flute

Part Number: ISC3102739 ISO: 3M F90AX D6.00-8-2.00-20 ANSI:3M F90AX D6.00-8-2.00-20
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011963
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3102739 Parallelogram 90.0°, Face Mill SHELL2.0000 Positive 6.0000 152.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002377
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.0000 50.80MM - 2
Flutes/Inserts 8
Tool Dia 6.0000 152.40MM
Insert Size Ic 20
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 6.0000 152.40MM
Depth Of Cut Max 0.7900
Cut Dia Max 6.0000 152.40MM
Materials & Finish
Tool Material Steel
