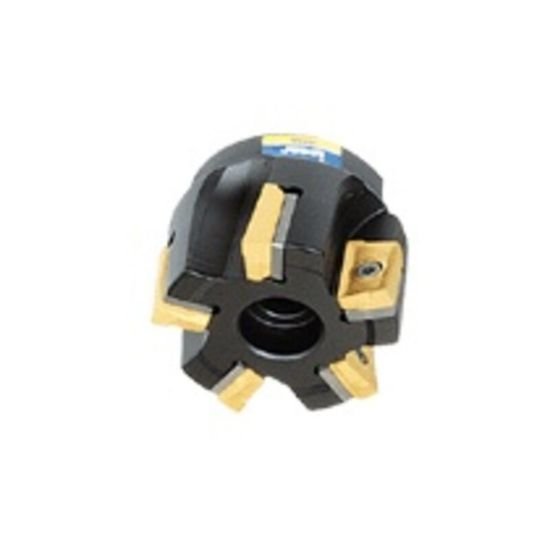

Picture of Iscar 3M F90AX D4.00-7-1.50-13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

Iscar 3M F90AX D4.00-7-1.50-13 Milling Cutter 90.0° 4.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

Part Number: ISC3181176 ISO: 3M F90AX D4.00-7-1.50-13 ANSI:3M F90AX D4.00-7-1.50-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012779
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3181176 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002258
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 7
Tool Dia 4.0000 101.60MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.0000 101.60MM
Depth Of Cut Max 0.5000
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
