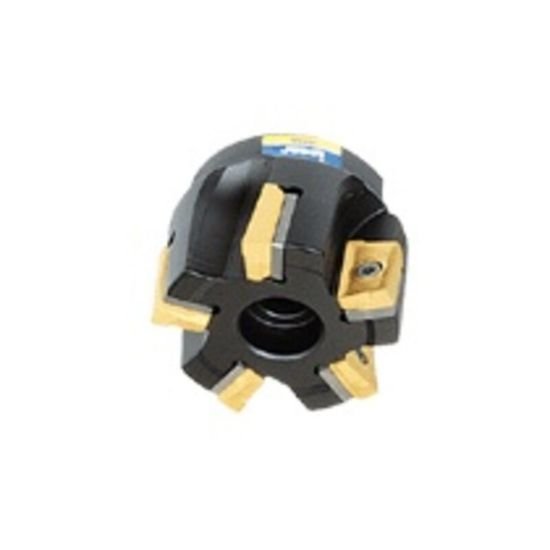

Picture of Iscar 3M F90AX D2.50-7-1.00-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 7 Flute

Iscar 3M F90AX D2.50-7-1.00-13 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.570 OAL 7 Flute

Part Number: ISC3101600 ISO: 3M F90AX D2.50-7-1.00-13 ANSI:3M F90AX D2.50-7-1.00-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011811
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3101600 Parallelogram 90.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002024
Seat/Nest 5601959
Seat Screw 7001998
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 7
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.5000
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
