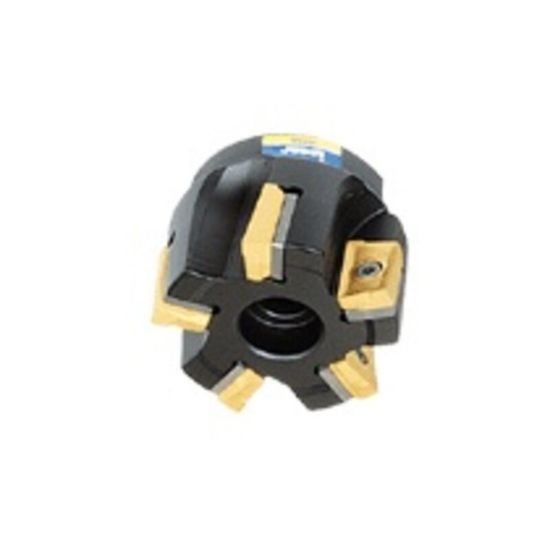

Picture of Iscar 3M F90AX D125-10-38.1-13 Milling Cutter 90.0° 4.921 Diameter Face Mill 1.500 2.480 OAL 10 Flute

Iscar 3M F90AX D125-10-38.1-13 Milling Cutter 90.0° 4.921 Diameter Face Mill 1.500 2.480 OAL 10 Flute

Part Number: ISC3101616 ISO: 3M F90AX D125-10-38.1-13 ANSI:3M F90AX D125-10-38.1-13
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1011816

Description

ISCAR 3101616 Parallelogram 90.0°, Face Mill SHELL1.5000 Positive 4.9210 124.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002024
Dimensions & Sizing
Overall Length 2.4800 62.99MM
Flutes/Inserts 10
Tool Dia 4.9210 124.99MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 4.9210 124.99MM
Depth Of Cut Max 0.4920
Cut Dia Max 4.9210 124.99MM
Materials & Finish
Tool Material Steel
