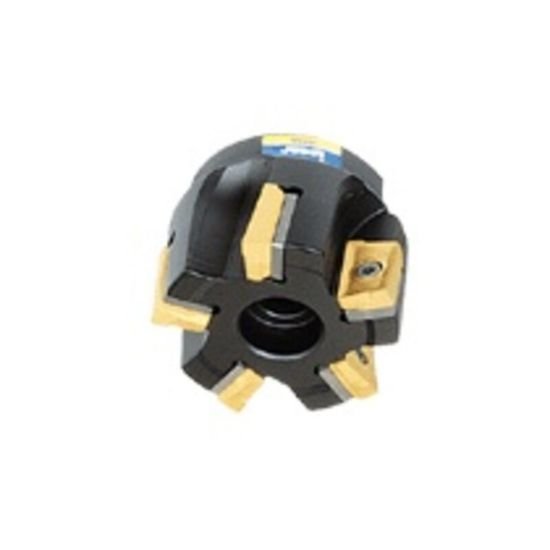

Picture of Iscar 3M F90AX D12.0-18-2.50-20 Milling Cutter 90.0° 12.00 Diameter Face Mill 2.500 2.480 OAL 18 Flute

Iscar 3M F90AX D12.0-18-2.50-20 Milling Cutter 90.0° 12.00 Diameter Face Mill 2.500 2.480 OAL 18 Flute

Part Number: ISC3181167 ISO: 3M F90AX D12.0-18-2.50-20 ANSI:3M F90AX D12.0-18-2.50-20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012774
Vendor: Sussex Tool and Supply
$0.00
ISCAR 3181167 Parallelogram 90.0°, Face Mill SHELL2.5000 Positive 12.0000 304.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 2.5000 63.50MM
Overall Length 2.4800 62.99MM
Coolant Thru Non Coolant
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 18
Tool Dia 12.0000 304.80MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 20
Cut Dia Min 12.0000 304.80MM
Coolant Type External
Depth Of Cut Max 0.7900
Cut Dia Max 12.0000 304.80MM
Insert Screw 7002791
Cutting Edge Angle 90.0°
Seat/Nest 5601959
Seat Screw 7001998
