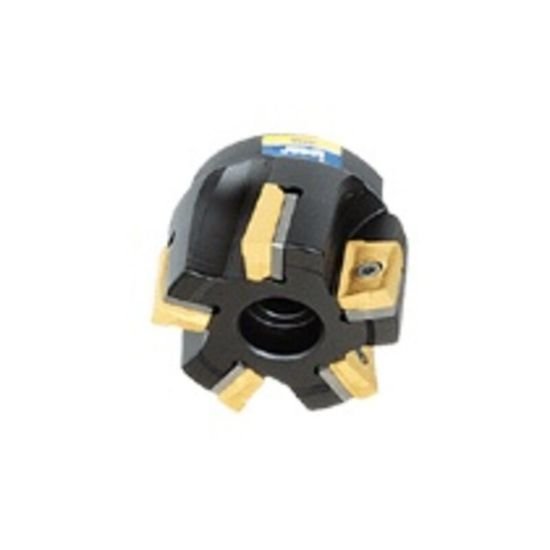

Picture of Iscar 3M F90AX D10.0-14-2.50-20 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 14 Flute

Iscar 3M F90AX D10.0-14-2.50-20 Milling Cutter 90.0° 10.00 Diameter Face Mill 2.500 2.500 OAL 14 Flute

Part Number: ISC3101313 ISO: 3M F90AX D10.0-14-2.50-20 ANSI:3M F90AX D10.0-14-2.50-20
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011797
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3101313 Parallelogram 90.0°, Face Mill SHELL2.5000 Positive 10.0000 254.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000219
Seat/Nest 5601959
Seat Screw 7001998
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 14
Tool Dia 10.0000 254.00MM
Insert Size Ic 20
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 10.0000 254.00MM
Depth Of Cut Max 0.7900
Cut Dia Max 10.0000 254.00MM
Materials & Finish
Tool Material Steel
