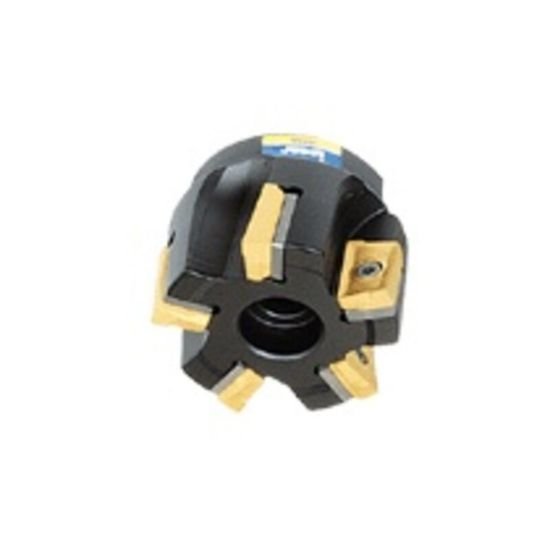

Picture of Iscar 3M F90AX D1.50-5-.75-13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.500 OAL 5 Flute

Iscar 3M F90AX D1.50-5-.75-13 Milling Cutter 90.0° 1.500 Diameter Face Mill 0.750 1.500 OAL 5 Flute

Part Number: ISC3101599 ISO: 3M F90AX D1.50-5-.75-13 ANSI:3M F90AX D1.50-5-.75-13
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011810
Vendor: Sussex Tool and Supply
$567.36

Description

ISCAR 3101599 Parallelogram 90.0°, Face Mill SHELL0.7500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000219
Seat/Nest 5601959
Seat Screw 7001998
Dimensions & Sizing
Overall Length 1.5000 38.10MM
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5000
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
