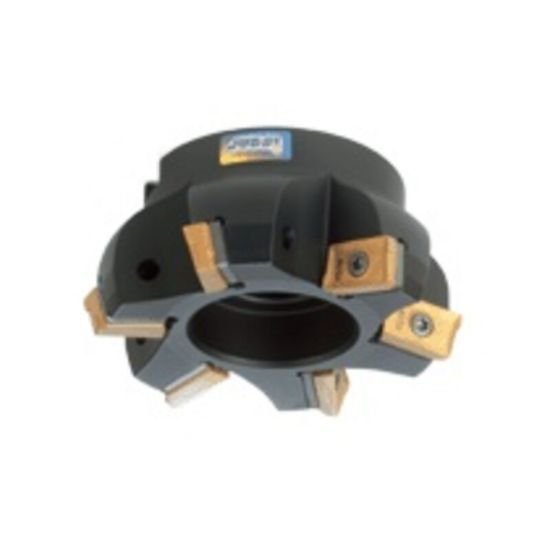

Picture of Iscar 3M F75AX D8.0-10-2.5-20 Milling Cutter 75.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 10 Flute

Iscar 3M F75AX D8.0-10-2.5-20 Milling Cutter 75.0° 8.000 Diameter Face Mill 2.500 2.500 OAL 10 Flute

Part Number: ISC3102709 ISO: 3M F75AX D8.0-10-2.5-20 ANSI:3M F75AX D8.0-10-2.5-20
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1011961

Description

ISCAR 3102709 Parallelogram 75.0°, Face Mill SHELL2.5000 Positive 8.0000 203.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002024
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 2.5000 63.50MM
Flutes/Inserts 10
Tool Dia 8.0000 203.20MM
Insert Size Ic 20
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 8.0000 203.20MM
Depth Of Cut Max 0.5000
Cut Dia Max 8.0000 203.20MM
Materials & Finish
Tool Material Steel
