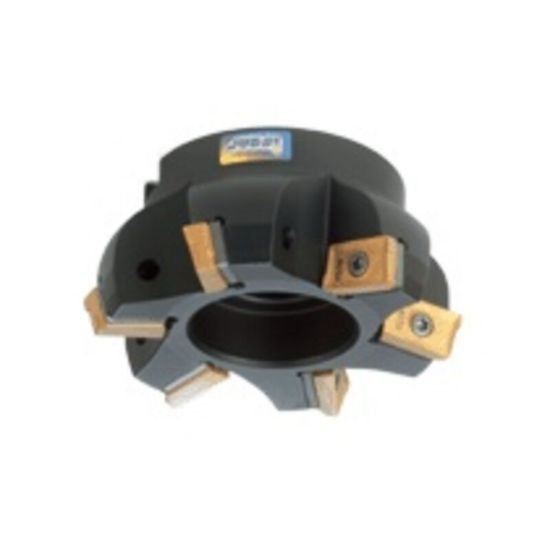

Picture of Iscar 3M F75AX D2.5-5-1.0-13 Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Iscar 3M F75AX D2.5-5-1.0-13 Milling Cutter 75.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Part Number: ISC3102696 ISO: 3M F75AX D2.5-5-1.0-13 ANSI:3M F75AX D2.5-5-1.0-13
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1011958

Description

ISCAR 3102696 Parallelogram 75.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002024
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 5
Tool Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 75.0°
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.1530
Cut Dia Max 2.5000 63.50MM - 2-1/2
Materials & Finish
Tool Material Steel
