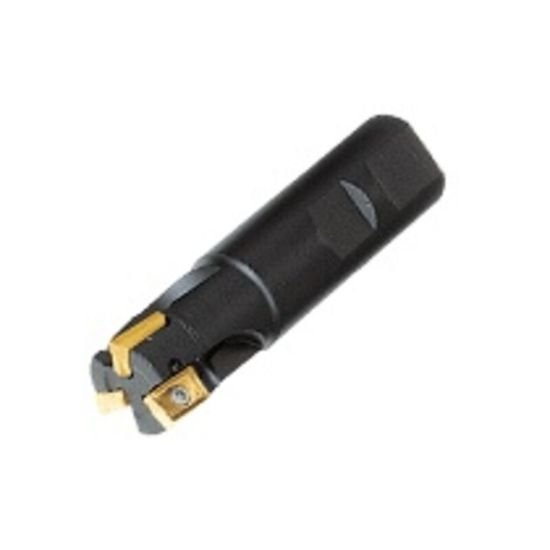

Picture of Iscar 3M E90AX D125-4-W125-13-C Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.000 OAL 4 Flute

Iscar 3M E90AX D125-4-W125-13-C Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.000 OAL 4 Flute

Part Number: ISC3101605 ISO: 3M E90AX D125-4-W125-13-C ANSI:3M E90AX D125-4-W125-13-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1011813
Vendor: Sussex Tool and Supply
$508.00
ISCAR 3101605 Parallelogram 90.0°, End Mill End Mill Weldon 1.2500 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.0000 101.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Insert Size Ic 13
Cut Dia Min 1.2500 31.75MM - 1-1/4
Coolant Type Through Hole
Depth Of Cut Max 0.5000
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 7002024
Cutting Edge Angle 90.0°
