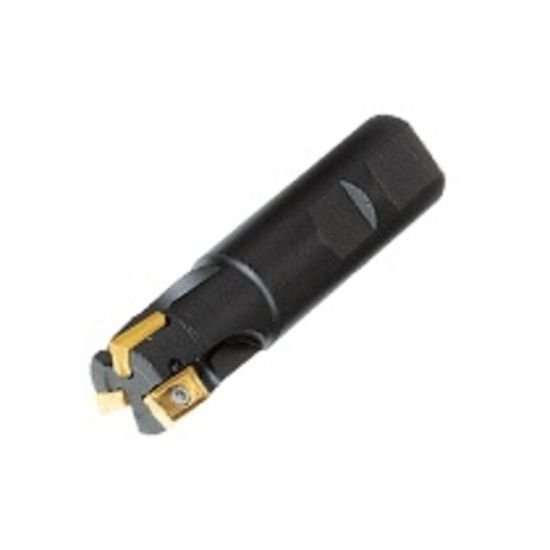

Picture of Iscar 3M E90AX D100-3-W100-13-C Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.500 OAL 3 Flute

Iscar 3M E90AX D100-3-W100-13-C Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.500 OAL 3 Flute

Part Number: ISC3101604 ISO: 3M E90AX D100-3-W100-13-C ANSI:3M E90AX D100-3-W100-13-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011812
Vendor: Sussex Tool and Supply
$475.20

Description

ISCAR 3101604 Parallelogram 90.0°, End Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002024
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.5000
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
