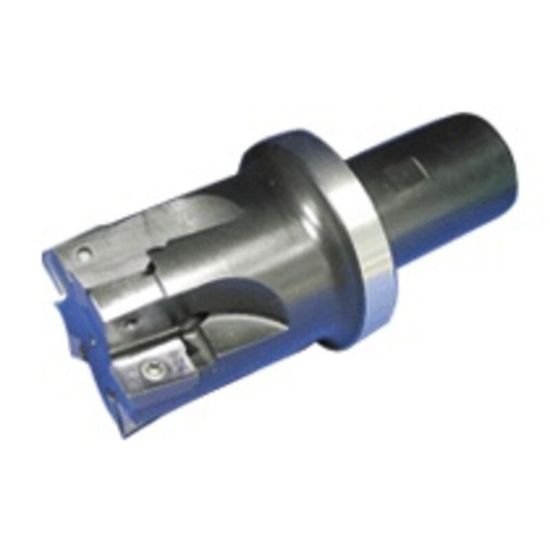

Picture of Iscar 3M E90AX D1.00-3-CF4-13 Milling Cutter 90.0° 1.000 Diameter Clickfit 1.574 3.540 OAL 3 Flute

Iscar 3M E90AX D1.00-3-CF4-13 Milling Cutter 90.0° 1.000 Diameter Clickfit 1.574 3.540 OAL 3 Flute

Part Number: ISC3101644 ISO: 3M E90AX D1.00-3-CF4-13 ANSI:3M E90AX D1.00-3-CF4-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011818
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3101644 Parallelogram 90.0°, Face Mill Quick Change CF4 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Thru Coolant
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002441
Dimensions & Sizing
Overall Length 3.5400 89.92MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.5000
Cut Dia Max 1.0000 25.40MM
Materials & Finish
Tool Material Steel
