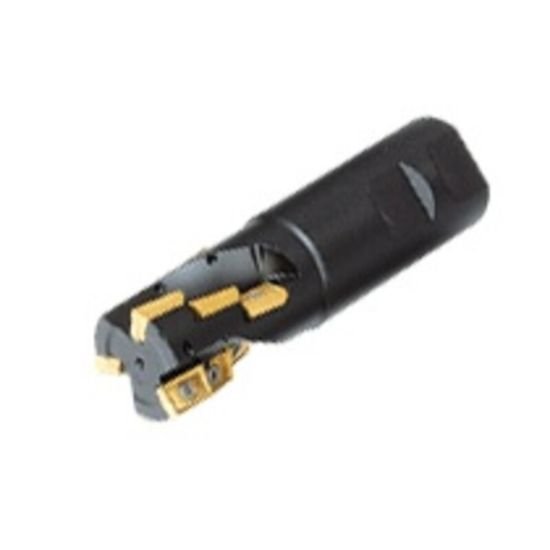

Picture of Iscar 3M AXK D1.50-14-3-W125-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.300 OAL 9 Flute

Iscar 3M AXK D1.50-14-3-W125-13 Milling Cutter 90.0°, Corn Cob 1.500 Diameter Weldon 1.250 4.300 OAL 9 Flute

Part Number: ISC3101597 ISO: 3M AXK D1.50-14-3-W125-13 ANSI:3M AXK D1.50-14-3-W125-13
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011808
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3101597 Parallelogram 90.0°, Corn Cob End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Corn Cob
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style AX
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7000219
Dimensions & Sizing
Overall Length 4.3000 109.22MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 9
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 13
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.5000 38.10MM - 1-1/2
Depth Of Cut Max 0.5000
Materials & Finish
Tool Material Steel
