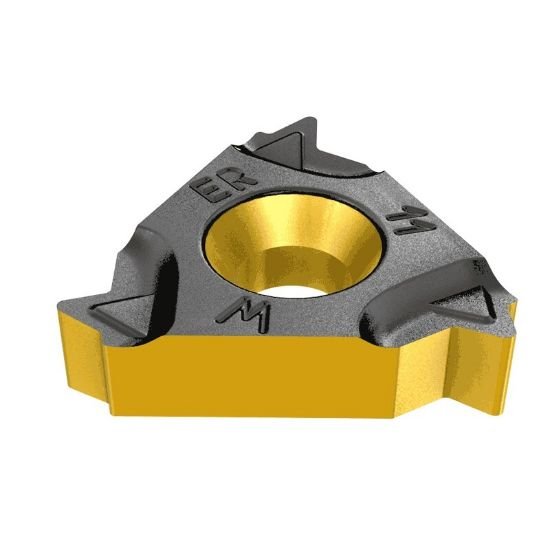

Picture of Iscar 22ER 14 W 3M IC908 Insert Iso Thread Ext.Threading Insert Full Profile 14.00TPI Whitworth BSW/BSF/BSP TiAlN

Iscar 22ER 14 W 3M IC908 Insert Iso Thread Ext.Threading Insert Full Profile 14.00TPI Whitworth BSW/BSF/BSP TiAlN

Part Number: ISC5902451 ISO: 22ER 14 W 3M IC908 ANSI:22ER 14 W 3M IC908

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1024967
Vendor: Sussex Tool and Supply
$54.80
This product has a minimum quantity of 10
ISCAR 5902451 Triangle Insert Positive TiAlN A tough submicron grain size substrate with a PVD coating, recommended for general use for diverse operations on materials such as steels, alloy steels, austenitic stainless steel and high temperature alloys at a wide range of cutting speeds. Features high wear resistance and chipping durability.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Coating TiAlN
Insert/Tool INSERT
Insert Application General Purpose
Corner Radius 0.0080 0.20MM
Insert Style ISO
Insert Shape/Cutter Pocket Shape Triangle
Grade IC908
Insert Type Positive
Insert Size Ic 22
Insert Fits ISO Thread
Hand Right Hand
Thread Pitch 14.00TPI
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern External
Full Or Partial Profile Full Profile
Threed Teeth 3
