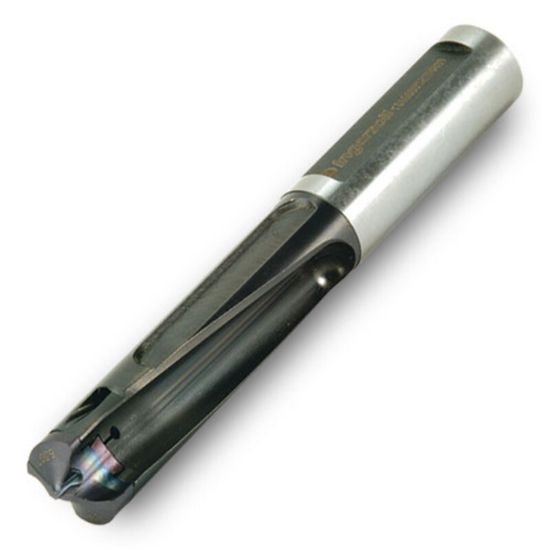

Ingersoll YD0950033SFR00 .3740-.3898 QwikTwist Body

Part Number: ING3221110

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1108311
$0.00
Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 0.3937 10.00MM
Cutter Type Drill
Overall Length 3.2800 83.31MM
Machine Side (Toolpost) CYLINDRICAL0.3937
Cutting Edge Definition or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance., as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), Cemented carbides are a class of hard materials used extensively for cutting tools
Type of Tool Drill
Machine Side (Toolpost) Connection Type Cylindrical
Included Angle 140°
Flutes Or Inserts 2
Shipping State ILLINOIS
Type Indexable Drill Single Insert
Family Group Quick Twist
Cutting Edge Material Carbide
Tool Material Carbide
Mach Side Connection Size 0.3937 10.00MM
Tool Diameter 0.3740 9.50MM
Cut Diameter Min 0.3740 9.50MM
Coolant Thru Thru Coolant
Cut Diameter Max 0.3900 9.91MM
Drill Type Indexable Drill
Made In USA No
Flute Length 1.3000 33.02MM
Diameter Deep 3.5.0x Dia
