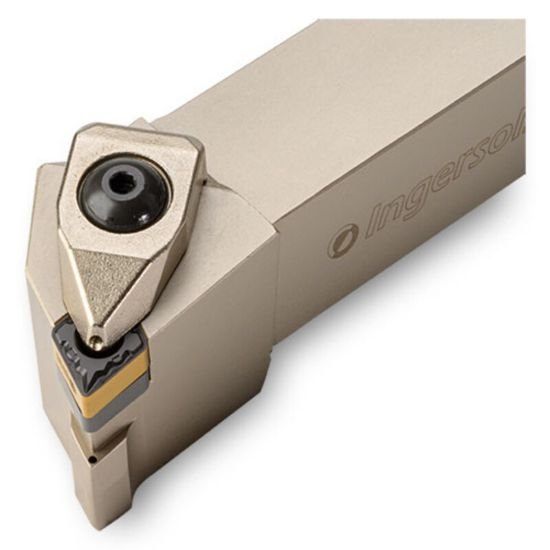

Picture of Ingersoll TXJNR16-2.7D-TB Turning Stick Tool 70.0° Square 1.000 Steel

Ingersoll TXJNR16-2.7D-TB Turning Stick Tool 70.0° Square 1.000 Steel

Part Number: ING6211463 ISO: TXJNR16-2.7D-TB ANSI:TXJNR16-2.7D-TB
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1048966
Vendor: Sussex Tool and Supply
$306.13

Description

INGERSOLL 6211463 80.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Coolant Thru Thru Coolant
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Inter/Extern External
Clamp Screw 6168771
Clamp/Wedge 6167966
Seat/Nest 6317066
Seat Screw 4351689
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 09 "2.7"
Tool Over Hang 1.1800
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 15.0° Clearance Angle
Clearance Angle 15.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 70.0°
