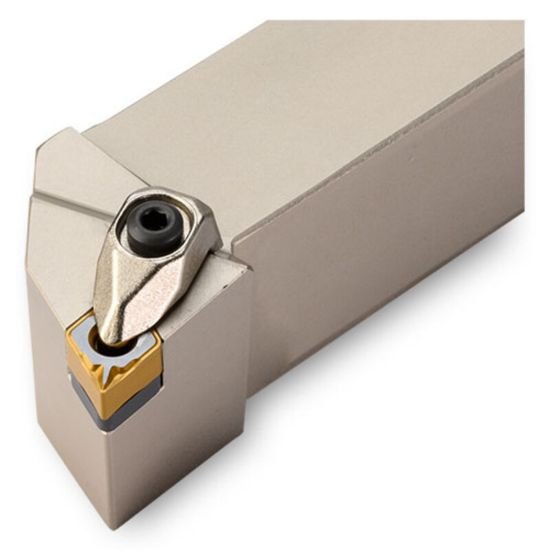

Picture of Ingersoll TXJNR12-3.5B Turning Stick Tool 70.0° Square 0.750 Steel

Ingersoll TXJNR12-3.5B Turning Stick Tool 70.0° Square 0.750 Steel

Part Number: ING6213204 ISO: TXJNR12-3.5B ANSI:TXJNR12-3.5B
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$130.67
SKU: 1048959

Description

INGERSOLL 6213204 TXJNR12-3.5B Turning Stick Tool 70.0° Square 0.750 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Right Hand
Inter/Extern External
Clamp Screw 4351489
Clamp/Wedge 6120128
Seat/Nest 6177486
Seat Screw 4351488
Dimensions & Sizing
Overall Length 4.5000 114.30MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 3.5
Tool Over Hang 1.2600
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 15.0° Clearance Angle
Clearance Angle 15.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 70.0°
