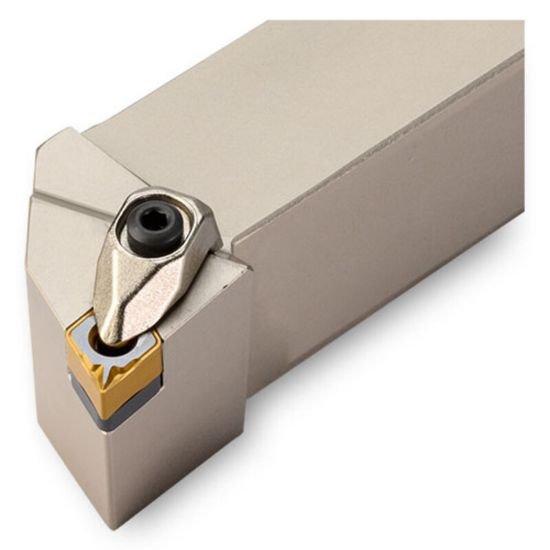

Picture of Ingersoll TXJNL16-3.5D Turning Stick Tool 70.0° Square 1.000 Steel

Ingersoll TXJNL16-3.5D Turning Stick Tool 70.0° Square 1.000 Steel

Part Number: ING6213209 ISO: TXJNL16-3.5D ANSI:TXJNL16-3.5D
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1048962
Vendor: Sussex Tool and Supply
$138.13

Description

INGERSOLL 6213209 80.0 ° Stick Tool1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Stick Tool
Type Of Tool Stick Tool
Insert/Tool TOOL
Cut Type General Purpose
Insert Style XN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Hand Left Hand
Inter/Extern External
Clamp Screw 4351489
Clamp/Wedge 6120128
Seat/Nest 6177486
Seat Screw 4351488
Dimensions & Sizing
Overall Length 6.0000 152.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 3.5
Tool Over Hang 1.2600
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 15.0° Clearance Angle
Clearance Angle 15.0°
Materials & Finish
Tool Material Steel
Compatibility & Fit
Insert Fits 70.0°
